Part 1: Product Introduction
Thermoplastic Road Marking Paint is a highly reflective road safety material widely used for highways, city roads, parking lots, airports, and industrial traffic areas. Made from premium petroleum resin, titanium dioxide, reflective glass beads, PE wax, and wear-resistant fillers, the product offers strong adhesion, excellent night visibility, fast drying performance, and long-lasting durability. It helps create clear and durable traffic markings to improve driving safety and reduce maintenance costs.
Part 2: Product Advantages
Key Features
Excellent night-time reflectivity
Strong adhesion to asphalt and concrete surfaces
Outstanding wear resistance and long service life
Fast drying and quick traffic reopening
Weather-resistant and UV-resistant performance
Stable melting flow for smooth line application
Customizable colors and formulations available
Eco-friendly and low odor during application
Suitable for highways, parking lots, and urban roads
Available in standard, reflective, and vibration types

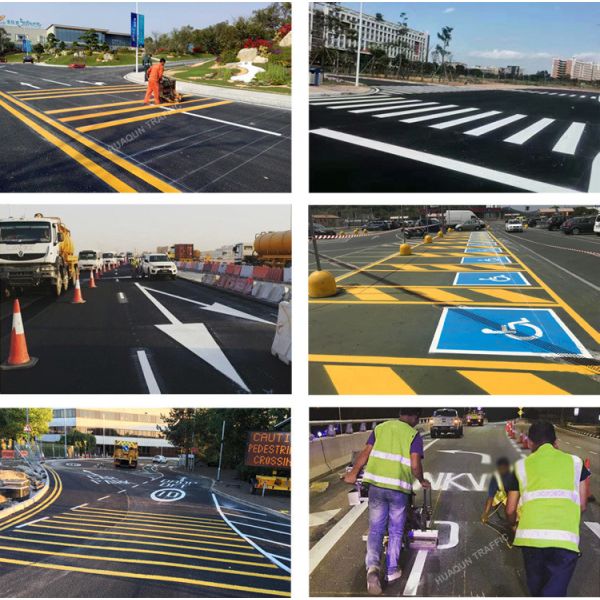

Part 3: Application Areas
Suitable Applications
Highway lane markings
Urban traffic lines
Parking lot guidance markings
Airport runway markings
Industrial zone roads
School and hospital traffic areas
Warehouse floor markings
Pedestrian crossings and directional arrows
Toll stations and service roads
Part 4: Technical Specifications
| Item |
Specification |
| Product Name |
Thermoplastic Road Marking Paint |
| Color |
White / Yellow / Customized |
| Package |
25KG per bag |
| Application Temperature |
180℃-220℃ |
| Coating Thickness |
1.8-2.5mm |
| Drying Time |
15-20 Minutes |
| Reflective Method |
Premix + Drop-on Glass Beads |
| Glass Bead Content |
Standard 30% |
| Applicable Surface |
Asphalt / Concrete |
| Service Life |
2-3 Years |
| Shelf Life |
24 Months |
| Application Method |
Thermoplastic Road Marking Machine |
Part 5: Application Method
Construction Procedure
-
1.Surface Cleaning
Ensure the road surface is dry, clean, and free from dust, oil, and water.
2. Layout Marking
Mark the guideline according to the construction drawing.
3. Primer Application
Apply primer evenly on concrete or old asphalt surfaces for better adhesion.
4. Heating Process
Heat the paint in a thermoplastic preheater to 180℃-220℃ while stirring continuously.
5. Line Marking
Use a thermoplastic road marking machine to apply the paint evenly and spread reflective glass beads simultaneously.
6. Natural Cooling
Allow the marking to cool naturally before reopening traffic.
Part 6: Packaging & Shipping
Packaging Details
Thermoplastic Paint: 25KG woven bags
Glass Beads: 25KG moisture-proof bags
Primer: 20KG metal drums
Shipping Information
Full container and LCL shipment available
Export pallet packaging supported
OEM packaging service available
Customized labels and shipping marks supported
Part 7: FAQ
Q1: How many square meters can 1 ton of paint cover?
A: Normally 170-220 square meters depending on road condition and coating thickness.
Q2: Why is the reflective effect sometimes poor at night?
A: It may be caused by improper glass bead spreading, low-quality beads, incorrect temperature, or insufficient coating thickness.
Q3: What road surfaces are suitable for this product?
A: Suitable for asphalt roads, concrete roads, parking lots, and industrial floors.
Q4: What is the shelf life of the product?
A: The shelf life is normally 24 months under proper storage conditions.
Q5: How long before traffic can reopen after application?
A: Usually 15-20 minutes after complete drying.
Q6: Can you customize colors and formulations?
A: Yes, customized colors and formulas are available according to different road standards and customer budgets.
Part 8: Factory Introduction
About Us
We are a professional manufacturer specializing in road safety materials and traffic facility products. Our main products include thermoplastic road marking paint, reflective glass beads, road marking machines, and related traffic safety solutions.
With advanced production lines and strict quality control systems, we provide customized solutions according to different international road standards. Our products are widely exported to Africa, the Middle East, Southeast Asia, and South America.
We are committed to offering stable quality, competitive pricing, professional export service, and fast delivery to global customers.
